31A-16

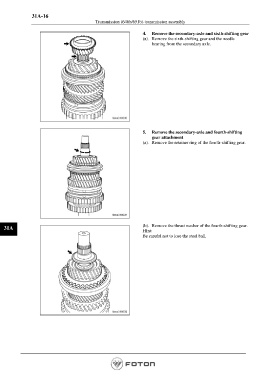

Transmission (646b/651b)-transmission assembly
4. Remove the secondary-axle and sixth-shifting gear
(a). Remove the sixth-shifting gear and the needle
bearing from the secondary axle.
5. Remove the secondary-axle and fourth-shifting
gear attachment
(a). Remove the retainer ring of the fourth-shifting gear.
31A (b). Remove the thrust washer of the fourth-shifting gear.
HInt:
Be careful not to lose the steel ball.
