P. 894

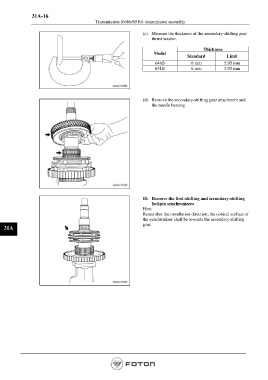

31A-16
Transmission (646b/651b)-transmission assembly
(c). Measure the thickness of the secondary-shifting gear
thrust washer.
Thickness
Model
Standard Limit
646B 6 mm 5.95 mm
651B 6 mm 5.95 mm
(d). Remove the secondary-shifting gear attachment and
the needle bearing.
10. Remove the first-shifting and secondary-shifting
lockpin synchronizers
Hint:
Remember the installation direction; the conical surface of
the synchronizer shall be towards the secondary-shifting
gear.
31A
