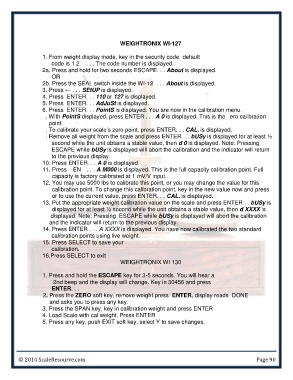

P. 90
WEIGHTRONIX WI-127
1. From weight display mode, key in the security code (default
code is 1 2 7). . . The code number is displayed.
2a. Press and hold for two seconds ESCAPE. . . About is displayed.
OR
2b. Press the SEAL switch inside the WI-127. . . About is displayed.
3. Press ← . . . SEtUP is displayed.
4. Press ENTER. . . 110 or 127 is displayed.
5. Press ENTER. . . AdJuSt is displayed.
6. Press ENTER. . . PointS is displayed. You are now in the calibration menu.
7. With PointS displayed, press ENTER . . . A 0 is displayed. This is the zero calibration
point.
8. To calibrate your scale’s zero point, press ENTER. . . CAL. is displayed.
9. Remove all weight from the scale and press ENTER. . . bUSy is displayed for at least ½
second while the unit obtains a stable value, then d 0 is displayed. Note: Pressing
ESCAPE while bUSy is displayed will abort the calibration and the indicator will return
to the previous display.
10. Press ENTER. . . A 0 is displayed.
11. Press MENU . . . A M000 is displayed. This is the full capacity calibration point. Full
capacity is factory calibrated at 1 mV/V input..
12. You may use 5000 lbs to calibrate this point, or you may change the value for this
calibration point. To change this calibration point, key in the new value now and press
or to use the current value, press ENTER. . . CAL. is displayed.
13. Put the appropriate weight calibration value on the scale and press ENTER . . bUSy is
displayed for at least ½ second while the unit obtains a stable value, then d XXXX is
displayed. Note: Pressing ESCAPE while bUSy is displayed will abort the calibration
and the indicator will return to the previous display.
14. Press ENTER . . . A XXXX is displayed. You have now calibrated the two standard
calibration points using live weight.
15. Press SELECT to save your
calibration.
16.Press SELECT to exit
WEIGHTRONIX WI 130
1. Press and hold the ESCAPE key for 3-5 seconds. You will hear a
2nd beep and the display will change. Key in 30456 and press
ENTER. . .
2. Press the ZERO soft key, remove weight press ENTER, display reads DONE
and asks you to press any key.
3. Press the SPAN key, key in calibration weight and press ENTER
4. Load Scale with cal weight, Press ENTER
5. Press any key, push EXIT soft key, select Y to save changes.
© 2014 ScaleResource.com Page 90
