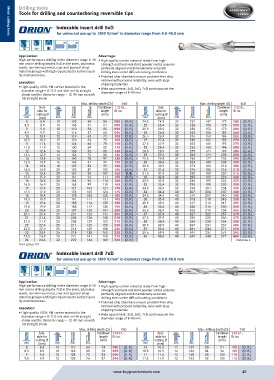

Drilling tools
Tools for drilling and counterboring reversible tips

Indexable insert drill 5xD
for universal use up to 1300 N/mm in diameter range from 8.0-40.0 mm
2
Metal cutting tools
Metal cutting tools
HA HB
5xD 130° IK
Application: Advantage:
High-performance drilling in the diameter range 8-40 ƒ High-quality carrier material made from high-
mm and in drilling depths 5xD in the steel, (stainless strength and heat-resistant powder metal, ensures
steel), non-ferrous metal, cast and (special alloy) perfectly aligned and dimensionally accurate
material groups with high requirements surface qual- drilling even under difficult cutting conditions
ity and tolerances. ƒ Polished chip chambers ensure problem-free chip
Execution: removal with process reliability, even with long-
chipping materials
ƒ High-quality HSSE PM carrier material in the ƒ Wide assortment: 3xD, 5xD, 7xD continuous in the
diameter range = 8-11.5 mm with an HA straight diameter range of 8-40 mm
shank and the diameter range = 12-40 mm an with
HB straight shank
Max. drilling depth (D) 5xD Max. drilling depth (D) 5xD
Suit- Cantilever 11215... Suit- Cantilever 11215...
able for h6 length ID no. able for h6 length ID no.
cutting Ø (mm) cutting Ø (mm)
mm (mm) mm mm mm mm (mm) mm mm mm
8 8.4 10 103 48 58 080 (O. R.) 24.5 24.9 32 232 147 172 245 (O. R.)
8.5 8.9 10 106 51 61 085 (O. R.) 25 25.4 32 235 150 175 250 (O. R.)
9 9.4 10 110 54 65 090 (O. R.) 25.5 25.9 32 239 153 179 255 (O. R.)
9.5 9.9 12 116 57 68 095 (O. R.) 26 26.4 32 242 156 182 260 (O. R.)
10 10.4 12 119 60 71 100 (O. R.) 26.5 26.9 32 246 159 186 265 (O. R.)
10.5 10.9 12 123 63 75 105 (O. R.) 27 27.4 32 249 162 189 270 (O. R.)
11 11.4 12 126 66 78 110 (O. R.) 27.5 27.9 32 252 165 192 275 (O. R.)
11.5 11.9 12 130 69 82 115 (O. R.) 28 28.4 32 256 168 196 280 (O. R.)
12 12.4 16 133 72 85 120 (O. R.) 28.5 28.9 32 259 171 199 285 (O. R.)
12.5 12.9 16 136 75 88 125 (O. R.) 29 29.4 32 263 174 203 290 (O. R.)
13 13.4 16 140 78 92 130 (O. R.) 29.5 29.9 32 266 177 206 295 (O. R.)
13.5 13.9 16 143 81 95 135 (O. R.) 30 30.4 32 269 180 209 300 (O. R.)
14 14.4 16 147 84 99 140 (O. R.) 30.5 30.9 32 273 183 213 305 (O. R.)
14.5 14.9 20 152 87 102 145 (O. R.) 31 31.4 32 276 186 216 310 (O. R.)
15 15.4 20 157 90 107 150 O. R. 31.5 31.9 32 280 189 220 315 (O. R.)
15.5 15.9 20 161 93 111 155 (O. R.) 32 32.4 32 283 192 223 320 (O. R.)
16 16.4 20 164 96 114 160 (O. R.) 32.5 32.9 32 286 195 226 325 (O. R.)
16.5 16.9 20 168 99 118 165 (O. R.) 33 33.4 32 290 198 230 330 (O. R.)
17 17.4 20 171 102 121 170 (O. R.) 33.5 33.9 32 293 201 233 335 (O. R.)
17.5 17.9 20 174 105 124 175 (O. R.) 34 34.4 40 307 204 237 340 (O. R.)
18 18.4 20 178 108 128 180 (O. R.) 34.5 34.9 40 310 207 240 345 (O. R.)
18.5 18.9 20 181 111 131 185 (O. R.) 35 35.4 40 313 210 243 350 (O. R.)
19 19.4 20 185 114 135 190 (O. R.) 35.5 35.9 40 317 213 247 355 (O. R.)
19.5 19.9 20 188 117 138 195 (O. R.) 36 36.4 40 320 216 250 360 (O. R.)
20 20.4 25 197 120 141 200 (O. R.) 36.5 36.9 40 324 219 254 365 (O. R.)
20.5 20.9 25 201 123 145 205 (O. R.) 37 37.4 40 327 222 257 370 (O. R.)
21 21.4 25 204 126 148 210 (O. R.) 37.5 37.9 40 330 225 260 375 (O. R.)
21.5 21.9 25 208 129 152 215 (O. R.) 38 38.4 40 334 228 264 380 (O. R.)
22 22.4 25 211 132 155 220 (O. R.) 38.5 38.9 40 337 231 267 385 (O. R.)
22.5 22.9 25 214 135 158 225 (O. R.) 39 39.4 40 341 234 271 390 (O. R.)
23 23.4 25 218 138 162 230 (O. R.) 39.5 39.9 40 344 237 274 395 (O. R.)
23.5 23.9 25 221 141 168 235 (O. R.) 40 40.4 40 347 240 277 400 (O. R.)
24 24.4 32 229 144 169 240 (O. R.) Unit price, €
Prod. group 119
Indexable insert drill 7xD
for universal use up to 1300 N/mm in diameter range from 8.0-40.0 mm
2
HA HB
IK
7xD 130°
Application: Advantage:
High-performance drilling in the diameter range 8-40 ƒ High-quality carrier material made from high-
mm and in drilling depths 7xD in the steel, (stainless strength and heat-resistant powder metal, ensures
steel), non-ferrous metal, cast and (special alloy) perfectly aligned and dimensionally accurate
material groups with high requirements surface qual- drilling even under difficult cutting conditions
ity and tolerances. ƒ Polished chip chambers ensure problem-free chip
Execution: removal with process reliability, even with long-
chipping materials
ƒ High-quality HSSE PM carrier material in the ƒ Wide assortment: 3xD, 5xD, 7xD continuous in the
diameter range = 8-11.5 mm with an HA straight diameter range of 8-40 mm
shank and the diameter range = 12-40 mm an with
HB straight shank
Max. drilling depth (D) 7xD Max. drilling depth (D) 7xD
Suit- Cantilever 11217... Suit- Cantilever 11217...
able for h6 length ID no. able for h6 length ID no.
cutting Ø (mm) cutting Ø (mm)
mm (mm) mm mm mm mm (mm) mm mm mm
8 8.4 10 119 64 74 080 (O. R.) 10 10.4 12 139 80 91 100 (O. R.)
8.5 8.9 10 123 68 78 085 (O. R.) 10.5 10.9 12 144 84 96 105 (O. R.)
9 9.4 10 128 72 83 090 (O. R.) 11 11.4 12 148 88 100 110 (O. R.)
9.5 9.9 12 135 76 87 095 (O. R.) 11.5 11.9 12 153 92 105 115 (O. R.)
