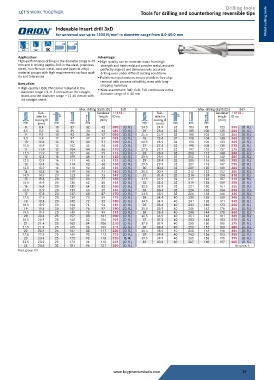

Page 39 - Buy Premium Tools ORION Catalogue

Drilling tools
Tools for drilling and counterboring reversible tips

Indexable insert drill 3xD Metal cutting tools
for universal use up to 1300 N/mm in diameter range from 8.0-40.0 mm
2
HA HB
3xD 130° IK
Application: Advantage:
High-performance drilling in the diameter range 8-40 ƒ High-quality carrier material made from high-
mm and in drilling depths 3xD in the steel, (stainless strength and heat-resistant powder metal, ensures
steel), non-ferrous metal, cast and (special alloy) perfectly aligned and dimensionally accurate
material groups with high requirements surface qual- drilling even under difficult cutting conditions
ity and tolerances. ƒ Polished chip chambers ensure problem-free chip
Execution: removal with process reliability, even with long-
chipping materials
ƒ High-quality HSSE PM carrier material in the ƒ Wide assortment: 3xD, 5xD, 7xD continuous in the
diameter range = 8-11.5 mm with an HA straight diameter range of 8-40 mm
shank and the diameter range = 12-40 mm an with
HB straight shank
Max. drilling depth (D) 3xD Max. drilling depth (D) 3xD
Suit- Cantilever 11213... Suit- Cantilever 11213...
able for h6 length ID no. able for h6 length ID no.
cutting Ø (mm) cutting Ø (mm)
mm (mm) mm mm mm mm (mm) mm mm mm
8 8.4 10 87 32 42 080 (O. R.) 24.5 24.9 32 183 98 123 245 (O. R.)
8.5 8.9 10 89 34 44 085 (O. R.) 25 25.4 32 185 100 125 250 (O. R.)
9 9.4 10 92 36 47 090 (O. R.) 25.5 25.9 32 188 102 128 255 (O. R.)
9.5 9.9 12 97 37 47 095 (O. R.) 26 26.4 32 190 104 130 260 (O. R.)
10 10.4 12 99 40 51 100 (O. R.) 26.5 26.9 32 193 106 133 265 (O. R.)
10.5 10.9 12 102 42 54 105 (O. R.) 27 27.4 32 195 108 135 270 (O. R.)
11 11.4 12 104 44 56 110 (O. R.) 27.5 27.9 32 197 110 137 275 (O. R.)
11.5 11.9 12 107 46 59 115 (O. R.) 28 28.4 32 200 112 140 280 (O. R.)
12 12.4 16 109 48 61 120 (O. R.) 28.5 28.9 32 202 114 142 285 (O. R.)
12.5 12.9 16 111 45 63 125 (O. R.) 29 29.4 32 205 116 145 290 (O. R.)
13 13.4 16 114 52 66 130 (O. R.) 29.5 29.9 32 207 118 147 295 (O. R.)
13.5 13.9 16 116 54 68 135 (O. R.) 30 30.4 32 209 120 149 300 (O. R.)
14 14.4 16 119 56 71 140 (O. R.) 30.5 30.9 32 212 122 152 305 (O. R.)
14.5 14.9 20 123 58 73 145 (O. R.) 31 31.4 32 214 124 154 310 (O. R.)
15 15.4 20 127 60 77 150 (O. R.) 31.5 31.9 32 217 126 157 315 (O. R.)
15.5 15.9 20 130 62 80 155 (O. R.) 32 32.4 32 219 128 159 320 (O. R.)
16 16.4 20 132 64 82 160 (O. R.) 32.5 32.9 32 221 130 161 325 (O. R.)
16.5 16.9 20 135 66 85 165 (O. R.) 33 33.4 32 224 132 164 330 (O. R.)
17 17.4 20 137 68 87 170 (O. R.) 33.5 33.9 32 226 134 166 335 (O. R.)
17.5 17.9 20 139 70 89 175 (O. R.) 34 34.4 40 239 136 169 340 (O. R.)
18 18.4 20 142 72 92 180 (O. R.) 34.5 34.9 40 241 138 171 345 (O. R.)
18.5 18.9 20 144 74 94 185 (O. R.) 35 35.4 40 243 140 173 350 (O. R.)
19 19.4 20 147 76 97 190 (O. R.) 35.5 35.9 40 246 142 176 355 (O. R.)
19.5 19.9 20 149 78 99 195 (O. R.) 36 36.4 40 248 144 178 360 (O. R.)
20 20.4 25 157 80 101 200 (O. R.) 36.5 36.9 40 251 146 181 365 (O. R.)
20.5 20.9 25 160 82 104 205 (O. R.) 37 37.4 40 253 148 183 370 (O. R.)
21 21.4 25 162 84 106 210 (O. R.) 37.5 37.9 40 255 150 185 375 (O. R.)
21.5 21.9 25 165 86 109 215 (O. R.) 38 38.4 40 258 152 188 380 (O. R.)
22 22.4 25 167 88 111 220 (O. R.) 38.5 38.9 40 260 154 196 385 (O. R.)
22.5 22.9 25 169 90 113 225 (O. R.) 39 39.4 40 263 156 193 390 (O. R.)
23 23.4 25 172 92 116 230 O. R. 39.5 39.9 40 265 158 195 395 (O. R.)
23.5 23.9 25 174 94 118 235 (O. R.) 40 40.4 40 267 160 197 400 (O. R.)
24 24.4 32 181 96 121 240 (O. R.) Unit price, €
Prod. group 119
