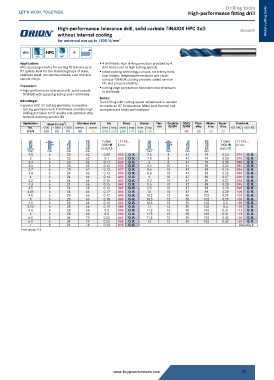

Page 37 - Buy Premium Tools ORION Catalogue
P. 37
Drilling tools
High-performance fitting drill
High-performance tolerance drill, solid carbide TiNAlOX HPC 3xD DIN 6537K Metal cutting tools
without internal cooling
for universal use up to 1300 N/mm 2
VHM HPC HA
3xD 145°
Application: 4 drill heels: high drilling precision provided by 4
HPC special geometry for cutting fit tolerances to drill heels even at high cutting speeds
H7 quality level for the material groups of steel, latest coating technology: unique, extremely hard,
stainless steel, non-ferrous metals, cast iron and low-friction, temperature-resistant and close-
special alloys. contour TiNAIOX coating provides added service
life and process stability
Execution: cutting edge preparation minimises microfractures
High-performance tolerance drill, solid carbide in the blade
TiNAlOX with special grinding and 4 drill heels
Notes:
Advantage: Test drilling with cutting-speed adjustment is needed
special HPC H7 cutting geometry: innovative to create an H7 fit tolerance. Make sure the tool and
cutting geometry with 4 drill heels provides high workpiece are really well clamped.
drilling precision to H7 quality and optimum chip
removal and long service life
Application Steel (N/mm ) Stainless steel Alu Brass Bronze Plas- Graphite GG(G) Titan- Nickel- Super- Hard mat.
2
No. <700 <1000 <1300 marten. austen. short long short long short long tics G(C)FK GjMW alloy alloy alloy <55 HRC <65 HRC
11175 130 90 70 40 35 270 200 200 170 150 130 90 30 20 20
f steel 11175... f steel 11175...
h6 1000 ID no. h6 1000 ID no.
(mm/U) (mm/U)
mm mm mm mm mm mm mm mm
2.8 6 20 62 0.09 028 O. R. 7.4 8 41 79 0.24 074 O. R.
3 6 20 62 0.1 030 O. R. 7.8 8 41 79 0.25 078 O. R.
3.3 6 20 62 0.11 033 O. R. 8 8 41 79 0.25 080 O. R.
3.5 6 20 62 0.12 035 O. R. 8.5 10 47 89 0.26 085 O. R.
3.7 6 20 62 0.13 037 O. R. 8.6 10 47 89 0.26 086 O. R.
3.8 6 24 66 0.13 038 O. R. 8.8 10 47 89 0.26 088 O. R.
4 6 24 66 0.14 040 O. R. 9 10 47 89 0.27 090 O. R.
4.2 6 24 66 0.15 042 O. R. 9.3 10 47 89 0.27 093 O. R.
4.3 6 24 66 0.15 043 O. R. 9.5 10 47 89 0.28 095 O. R.
4.5 6 24 66 0.16 045 O. R. 9.8 10 47 89 0.28 098 O. R.
4.65 6 24 66 0.17 046 O. R. 10 10 47 89 0.29 100 O. R.
4.8 6 28 66 0.17 048 O. R. 10.2 12 55 102 0.29 102 O. R.
5 6 28 66 0.18 050 O. R. 10.5 12 55 102 0.29 105 O. R.
5.5 6 28 66 0.19 055 O. R. 10.8 12 55 102 0.3 108 O. R.
5.55 6 28 66 0.19 056 O. R. 11 12 55 102 0.3 110 O. R.
5.8 6 28 66 0.2 058 O. R. 11.2 12 55 102 0.31 112 O. R.
6 6 28 66 0.2 060 O. R. 11.5 12 55 102 0.31 115 O. R.
6.5 8 34 79 0.22 065 O. R. 11.8 12 55 102 0.32 118 O. R.
6.8 8 34 79 0.22 068 O. R. 12 12 55 102 0.32 120 O. R.
7 8 34 79 0.23 070 O. R. Unit price, €
Prod. group 113
