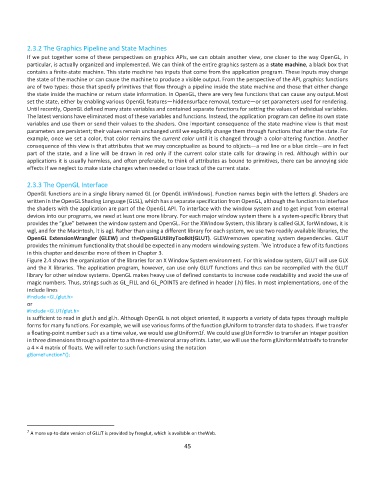

2.3.2 The Graphics Pipeline and State Machines
If we put together some of these perspectives on graphics APIs, we can obtain another view, one closer to the way OpenGL, in
particular, is actually organized and implemented. We can think of the entire graphics system as a state machine, a black box that
contains a finite-state machine. This state machine has inputs that come from the application program. These inputs may change
the state of the machine or can cause the machine to produce a visible output. From the perspective of the API, graphics functions
are of two types: those that specify primitives that flow through a pipeline inside the state machine and those that either change
the state inside the machine or return state information. In OpenGL, there are very few functions that can cause any output.Most
set the state, either by enabling various OpenGL features—hiddensurface removal, texture—or set parameters used for rendering.
Until recently, OpenGL defined many state variables and contained separate functions for setting the values of individual variables.
The latest versions have eliminated most of these variables and functions. Instead, the application program can define its own state
variables and use them or send their values to the shaders. One important consequence of the state machine view is that most
parameters are persistent; their values remain unchanged until we explicitly change them through functions that alter the state. For
example, once we set a color, that color remains the current color until it is changed through a color-altering function. Another
consequence of this view is that attributes that we may conceptualize as bound to objects—a red line or a blue circle—are in fact
part of the state, and a line will be drawn in red only if the current color state calls for drawing in red. Although within our
applications it is usually harmless, and often preferable, to think of attributes as bound to primitives, there can be annoying side
effects if we neglect to make state changes when needed or lose track of the current state.

2.3.3 The OpenGL Interface
OpenGL functions are in a single library named GL (or OpenGL inWindows). Function names begin with the letters gl. Shaders are
written in the OpenGL Shading Language (GLSL), which has a separate specification from OpenGL, although the functions to interface
the shaders with the application are part of the OpenGL API. To interface with the window system and to get input from external
devices into our programs, we need at least one more library. For each major window system there is a system-specific library that
provides the “glue” between the window system and OpenGL. For the XWindow System, this library is called GLX, forWindows, it is
wgl, and for the Macintosh, it is agl. Rather than using a different library for each system, we use two readily available libraries, the
OpenGL ExtensionWrangler (GLEW) and theOpenGLUtilityToolkit(GLUT). GLEWremoves operating system dependencies. GLUT
7
provides the minimum functionality that should be expected in any modern windowing system. We introduce a few of its functions
in this chapter and describe more of them in Chapter 3.
Figure 2.4 shows the organization of the libraries for an X Window System environment. For this window system, GLUT will use GLX
and the X libraries. The application program, however, can use only GLUT functions and thus can be recompiled with the GLUT
library for other window systems. OpenGL makes heavy use of defined constants to increase code readability and avoid the use of
magic numbers. Thus, strings such as GL_FILL and GL_POINTS are defined in header (.h) files. In most implementations, one of the
include lines
#include <GL/glut.h>
or
#include <GLUT/glut.h>
is sufficient to read in glut.h and gl.h. Although OpenGL is not object oriented, it supports a variety of data types through multiple
forms for many functions. For example, we will use various forms of the function glUniform to transfer data to shaders. If we transfer
a floating-point number such as a time value, we would use glUniform1f. We could use glUniform3iv to transfer an integer position
in three dimensions through a pointer to a three-dimensional array of ints. Later, we will use the form glUniformMatrix4fv to transfer
a 4 × 4 matrix of floats. We will refer to such functions using the notation
glSomeFunction*();

7 A more up-to-date version of GLUT is provided by freeglut, which is available on theWeb.
