Installation
5.15. Remote I/O
The Remote I/O Unit is optional hardware that can be used to read Operating Conditions.
The Remote I/O Unit converts 4~20 mA analog signals to Modbus over TCP/IP data, which
the GuardII+ monitor then converts to real-world values using a translation formula, which is
programmed into the monitor. Refer to the Remote IO User Manual for details.

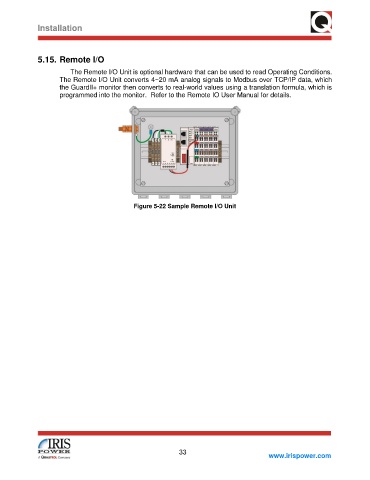

Figure 5-22 Sample Remote I/O Unit
