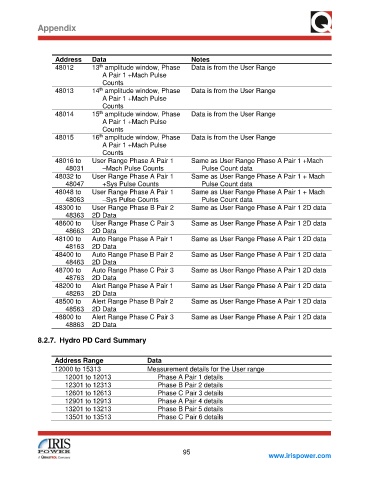

Appendix

Address Data Notes
48012 13 amplitude window, Phase Data is from the User Range
th
A Pair 1 +Mach Pulse
Counts
th
48013 14 amplitude window, Phase Data is from the User Range
A Pair 1 +Mach Pulse
Counts
48014 15 amplitude window, Phase Data is from the User Range
th
A Pair 1 +Mach Pulse
Counts
th
48015 16 amplitude window, Phase Data is from the User Range
A Pair 1 +Mach Pulse
Counts
48016 to User Range Phase A Pair 1 Same as User Range Phase A Pair 1 +Mach
48031 –Mach Pulse Counts Pulse Count data
48032 to User Range Phase A Pair 1 Same as User Range Phase A Pair 1 + Mach
48047 +Sys Pulse Counts Pulse Count data
48048 to User Range Phase A Pair 1 Same as User Range Phase A Pair 1 + Mach
48063 –Sys Pulse Counts Pulse Count data
48300 to User Range Phase B Pair 2 Same as User Range Phase A Pair 1 2D data
48363 2D Data
48600 to User Range Phase C Pair 3 Same as User Range Phase A Pair 1 2D data
48663 2D Data
48100 to Auto Range Phase A Pair 1 Same as User Range Phase A Pair 1 2D data
48163 2D Data
48400 to Auto Range Phase B Pair 2 Same as User Range Phase A Pair 1 2D data
48463 2D Data
48700 to Auto Range Phase C Pair 3 Same as User Range Phase A Pair 1 2D data
48763 2D Data
48200 to Alert Range Phase A Pair 1 Same as User Range Phase A Pair 1 2D data
48263 2D Data
48500 to Alert Range Phase B Pair 2 Same as User Range Phase A Pair 1 2D data
48563 2D Data
48800 to Alert Range Phase C Pair 3 Same as User Range Phase A Pair 1 2D data
48863 2D Data

8.2.7. Hydro PD Card Summary

Address Range Data
12000 to 15313 Measurement details for the User range
12001 to 12013 Phase A Pair 1 details
12301 to 12313 Phase B Pair 2 details
12601 to 12613 Phase C Pair 3 details
12901 to 12913 Phase A Pair 4 details
13201 to 13213 Phase B Pair 5 details
13501 to 13513 Phase C Pair 6 details
