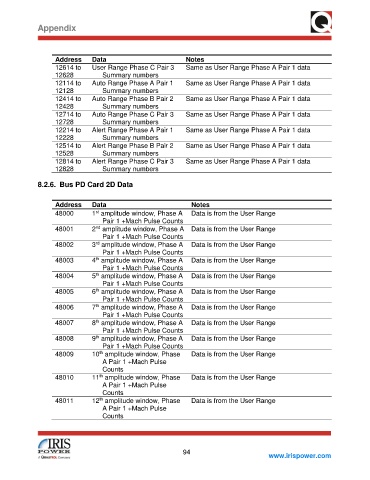

Page 102 - GuardII+ Series 4208 Platform PD User Manual

Appendix

Address Data Notes
12614 to User Range Phase C Pair 3 Same as User Range Phase A Pair 1 data
12628 Summary numbers
12114 to Auto Range Phase A Pair 1 Same as User Range Phase A Pair 1 data
12128 Summary numbers
12414 to Auto Range Phase B Pair 2 Same as User Range Phase A Pair 1 data
12428 Summary numbers
12714 to Auto Range Phase C Pair 3 Same as User Range Phase A Pair 1 data
12728 Summary numbers
12214 to Alert Range Phase A Pair 1 Same as User Range Phase A Pair 1 data
12228 Summary numbers
12514 to Alert Range Phase B Pair 2 Same as User Range Phase A Pair 1 data
12528 Summary numbers
12814 to Alert Range Phase C Pair 3 Same as User Range Phase A Pair 1 data
12828 Summary numbers

8.2.6. Bus PD Card 2D Data

Address Data Notes
st
48000 1 amplitude window, Phase A Data is from the User Range
Pair 1 +Mach Pulse Counts
nd
48001 2 amplitude window, Phase A Data is from the User Range
Pair 1 +Mach Pulse Counts
48002 3 amplitude window, Phase A Data is from the User Range
rd
Pair 1 +Mach Pulse Counts
th
48003 4 amplitude window, Phase A Data is from the User Range
Pair 1 +Mach Pulse Counts
48004 5 amplitude window, Phase A Data is from the User Range
th
Pair 1 +Mach Pulse Counts
th
48005 6 amplitude window, Phase A Data is from the User Range
Pair 1 +Mach Pulse Counts
th
48006 7 amplitude window, Phase A Data is from the User Range
Pair 1 +Mach Pulse Counts
th
48007 8 amplitude window, Phase A Data is from the User Range
Pair 1 +Mach Pulse Counts
th
48008 9 amplitude window, Phase A Data is from the User Range
Pair 1 +Mach Pulse Counts
48009 10 amplitude window, Phase Data is from the User Range
th
A Pair 1 +Mach Pulse
Counts
th
48010 11 amplitude window, Phase Data is from the User Range
A Pair 1 +Mach Pulse
Counts
48011 12 amplitude window, Phase Data is from the User Range
th
A Pair 1 +Mach Pulse
Counts

94
