Page 1054 - 2006 HARLEY FLSTCI SERVICE MANUAL
P. 1054

8-15

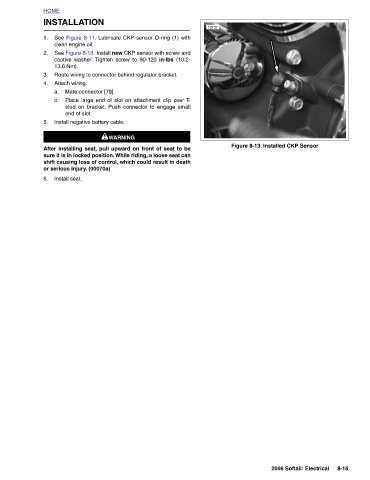

                                                       Figure 8-13. Installed CKP Sensor                                                                         2006 Softail: Electrical



















               10737





















              INSTALLATION See Figure 8-11. Lubricate CKP sensor O-ring (1) with  clean engine oil. See Figure 8-13. Install new CKP sensor with screw and captive washer.  Tighten screw to 90-120  in-lbs  (10.2-  13.6 Nm). Route wiring to connector behind regulator bracket.   Attach wiring.  Mate connector [79]. Place large end of slot on attachment clip over T- stud on bracket. Push connector to engage small  end of slot. Install negative battery cable.  1WARNING 1WARNING After installing seat, pull upward on front of seat to be sure it is in locked position. While riding, a loose seat can shift causing loss of control, which could result in death or serious inju
