Page 1052 - 2006 HARLEY FLSTCI SERVICE MANUAL

d0289x8x 8-13

T20 TORX screw @ 25-35 in-lbs (2.8-4.0 Nm)

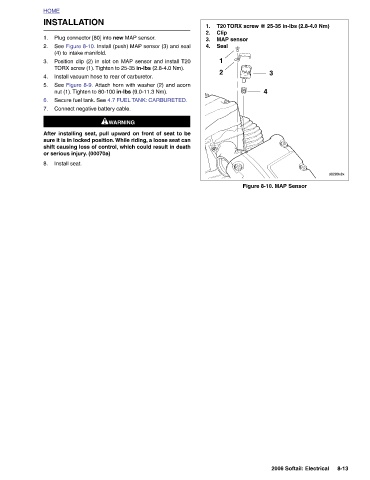

Figure 8-10. MAP Sensor 2006 Softail: Electrical

3
4

MAP sensor

Clip Seal 1 2

1. 2. 3. 4.

Plug connector [80] into new MAP sensor. See Figure 8-10. Install (push) MAP sensor (3) and seal Position clip (2) in slot on MAP sensor and install T20 TORX screw (1). Tighten to 25-35 in-lbs (2.8-4.0 Nm). Install vacuum hose to rear of carburetor. See Figure 8-9. Attach horn with washer (2) and acorn nut (1). Tighten to 80-100 in-lbs (9.0-11.3 Nm). Secure fuel tank. See 4.7 FUEL TANK: CARBURETED. Connect negative battery cable. 1WARNING 1WARNING After installing seat, pull upward on front of seat to be sure it is in locked position. While riding, a loose seat can shift causing loss of control, which could result in death

INSTALLATION (4) to intake manifold. or serious injury. (00070a) Install seat.

HOME 1. 2. 3. 4. 5. 6. 7. 8.
