Page 1124 - 2006 HARLEY FLSTCI SERVICE MANUAL

8-85

2006 Softail: Electrical

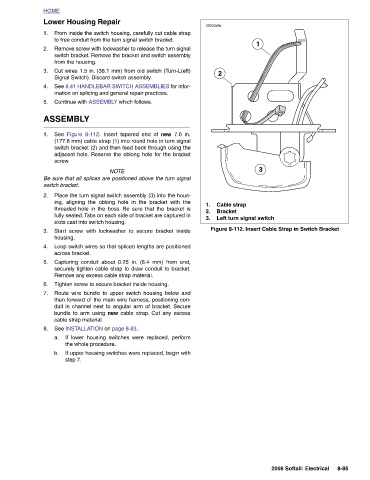

3 Figure 8-112. Insert Cable Strap in Switch Bracket
1 Left turn signal switch
Cable strap Bracket

d0333x8x 2 1. 2. 3.

7.0 in. Insert tapered end of new

Lower Housing Repair From inside the switch housing, carefully cut cable strap to free conduit from the turn signal switch bracket. Remove screw with lockwasher to release the turn signal switch bracket. Remove the bracket and switch assembly from the housing. Cut wires 1.5 in. (38.1 mm) from old switch (Turn-L(eft) Signal Switch). Discard switch assembly. See 8.41 HANDLEBAR SWITCH ASSEMBLIES for infor- mation on splicing and general repair practices. Continue with ASSEMBLY which follows. Figure 8-112. (177.8 mm) cable strap (1) into round hole in turn signal switch bracket (2) and then feed back through using the adjacent hole. Reserve the oblong

HOME 1. 2. 3. 4. 5. ASSEMBLY See 1. screw. switch bracket. 2. 3. housing. 4. 5. 6. 7. 8. a. b.
