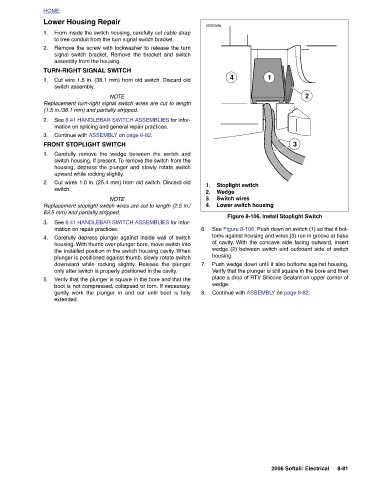

1 Figure 8-106. Install Stoplight Switch See Figure 8-106. Push down on switch (1) so that it bot- toms against housing and wires (3) run in groove at base of cavity. With the concave side facing outward, insert wedge (2) between switch and outboard side of switch Push wedge down until it also bottoms against housing. Verify that the plunger is still square in the bore and then place a drop of RTV Silicone Sealant on upper corner of Continue with ASSEMBLY on page 8-82.
Stoplight switch Lower switch housing

4 Wedge Switch wires
d0329x8x housing. wedge.
3.
4.
2.
1.
6. 7. 8.

Lower Housing Repair From inside the switch housing, carefully cut cable strap to free conduit from the turn signal switch bracket. Remove the screw with lockwasher to release the turn signal switch bracket. Remove the bracket and switch assembly from the housing. TURN-RIGHT SIGNAL SWITCH Cut wire 1.5 in. (38.1 mm) from old switch. Discard old switch assembly. NOTE Replacement turn-right signal switch wires are cut to length (1.5 in./38.1 mm) and partially stripped. See 8.41 HANDLEBAR SWITCH ASSEMBLIES for infor- mation on splicing and general repair practices. Continue with ASSEMBLY on page 8-82. FRONT STOPLIGHT SWITCH Carefully remove the wedge b
