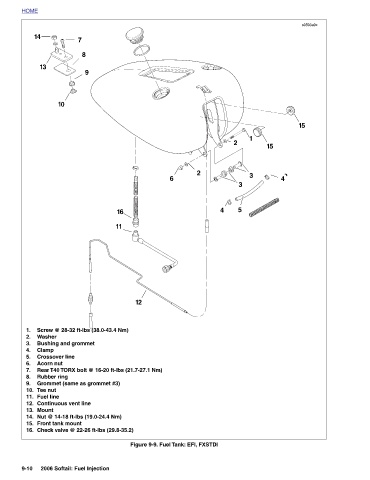

Figure 9-9. Fuel Tank: EFI, FXSTDI
2
6
12
Screw @ 28-32 ft-lbs (38.0-43.4 Nm)
16 11
9 Rear T40 TORX bolt @ 16-20 ft-lbs (21.7-27.1 Nm)
8 Check valve @ 22-26 ft-lbs (29.8-35.2)
7 Grommet (same as grommet #3) Nut @ 14-18 ft-lbs (19.0-24.4 Nm) 2006 Softail: Fuel Injection
10 Bushing and grommet Crossover line Continuous vent line Front tank mount
13 Washer Clamp Acorn nut Rubber ring Tee nut Fuel line Mount
14
