9-9

13
2006 Softail: Fuel Injection

4
5

2
1
3

3
4

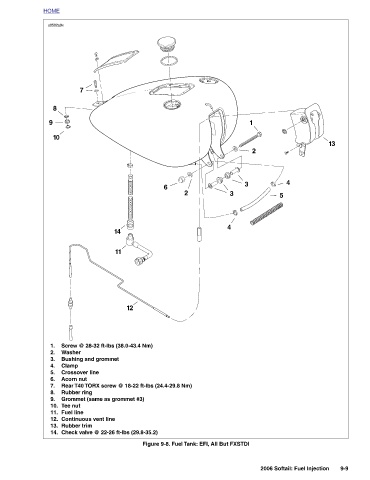

2 Figure 9-8. Fuel Tank: EFI, All But FXSTDI

6

Screw @ 28-32 ft-lbs (38.0-43.4 Nm) Grommet (same as grommet #3) Check valve @ 22-26 ft-lbs (29.8-35.2)

12 Rear T40 TORX screw @ 18-22 ft-lbs (24.4-29.8 Nm)
14 11

7 Washer Bushing and grommet Clamp Crossover line Acorn nut Rubber ring Tee nut Fuel line Continuous vent line Rubber trim

HOME s0502a9x 8 9 10 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14.
