Page 1188 - 2006 HARLEY FLSTCI SERVICE MANUAL

2.8 2-13

2006 FLSTFSE 2 : Chassis

1

2

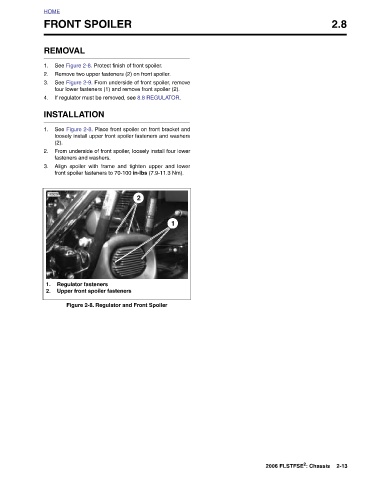

FRONT SPOILER See Figure 2-8. Protect finish of front spoiler. Remove two upper fasteners (2) on front spoiler. See Figure 2-9. From underside of front spoiler, remove four lower fasteners (1) and remove front spoiler (2). If regulator must be removed, see 8.8 REGULATOR. INSTALLATION See Figure 2-8. Place front spoiler on front bracket and loosely install upper front spoiler fasteners and washers From underside of front spoiler, loosely install four lower fasteners and washers. Align spoiler with frame and tighten upper and lower front spoiler fasteners to 70-100 in-lbs (7.9-11.3 Nm). Regulator fasteners Upper front spoiler fasteners Figure 2-8.

HOME REMOVAL 1. 2. 3. 4. 1. (2). 2. 3. 10929 1. 2.
