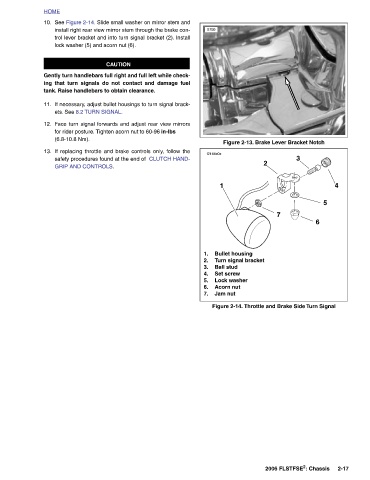

Figure 2-13. Brake Lever Bracket Notch 3 2 7 Figure 2-14. Throttle and Brake Side Turn Signal 2006 FLSTFSE 2 : Chassis

8700 f2144x0x 1 Bullet housing Turn signal bracket Ball stud Set screw Lock washer Acorn nut Jam nut
1. 2. 3. 4. 5. 6. 7.

install right rear view mirror stem through the brake con-
See Figure 2-14. Slide small washer on mirror stem and
trol lever bracket and into turn signal bracket (2). Install

lock washer (5) and acorn nut (6). CAUTION Gently turn handlebars full right and full left while check- ing that turn signals do not contact and damage fuel tank. Raise handlebars to obtain clearance. If necessary, adjust bullet housings to turn signal brack- ets. See 8.2 TURN SIGNAL. Face turn signal forwards and adjust rear view mirrors for rider posture. Tighten acorn nut to 60-96 in-lbs If replacing throttle and brake controls only, follow the safety procedures found at the end of CLUTCH HAND- GRIP AND CONTROLS.

HOME 10. 11. 12. (6.8-10.8 Nm). 13.
