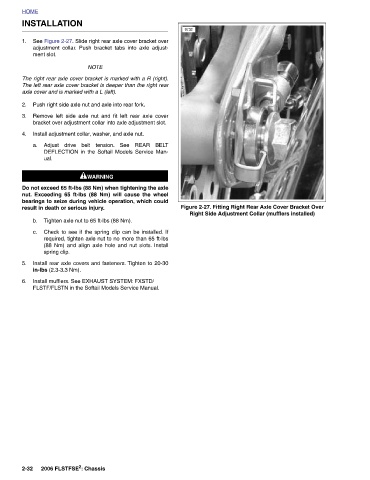

9732 Figure 2-27. Fitting Right Rear Axle Cover Bracket Over Right Side Adjustment Collar (mufflers installed)

See Figure 2-27. Slide right rear axle cover bracket over
adjustment collar. Push bracket tabs into axle adjust-

NOTE The right rear axle cover bracket is marked with a R (right). The left rear axle cover bracket is deeper than the right rear Push right side axle nut and axle into rear fork. Remove left side axle nut and fit left rear axle cover bracket over adjustment collar into axle adjustment slot. Install adjustment collar, washer, and axle nut. Adjust drive belt tension. See REAR BELT DEFLECTION in the Softail Models Service Man- 1WARNING 1WARNING Do not exceed 65 ft-lbs (88 Nm) when tightening the axle nut. Exceeding 65 ft-lbs (88 Nm) will cause the wheel bearings to seize during vehicle operation, which could Tighten axle nut to 65 ft-lb

INSTALLATION ment slot. axle cover and is marked with a L (left). ual. result in death or serious injury. spring clip. in-lbs (2.3-3.3 Nm). 2006 FLSTFSE 2 : Chassis

HOME 1. 2. 3. 4. a. b. c. 5. 6. 2-32
