Remove front bracket (3). Remove four locknuts (4). Remove U-bolts (5) and mounting blocks (6). Remove rear bracket (7). 8

SPOILER/REGULATOR BRACKET
1 3
4. 5. 6. 7.

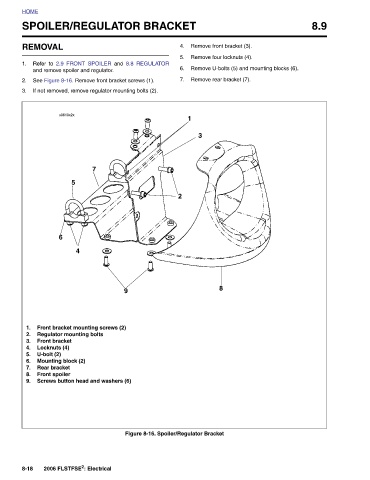

2 Figure 8-16. Spoiler/Regulator Bracket
Refer to 2.9 FRONT SPOILER and 8.8 REGULATOR

9

and remove spoiler and regulator. See Figure 8-16. Remove front bracket screws (1). If not removed, remove regulator mounting bolts (2). s0610x2x 7 5 6 4 Front bracket mounting screws (2) Regulator mounting bolts Mounting block (2) Screws button head and washers (6) 2006 FLSTFSE 2 : Electrical

REMOVAL Front bracket Locknuts (4) U-bolt (2) Rear bracket Front spoiler
