Page 1272 - 2006 HARLEY FLSTCI SERVICE MANUAL

8.7 8-15

2006 FLSTFSE 2 : Electrical

Locate and repair

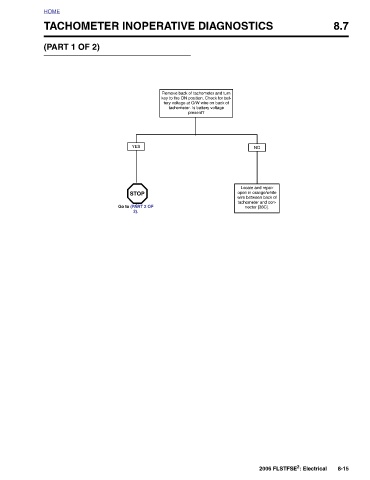

TACHOMETER INOPERATIVE DIAGNOSTICS
NO open in orange/white wire between back of tachometer and con- nector [38C].

Remove back of tachometer and turn key to the ON position. Check for bat- tery voltage at O/W wire on back of tachometer. Is battery voltage present?

Go to (PART 2 OF
STOP
YES 2).

(PART 1 OF 2)

HOME
