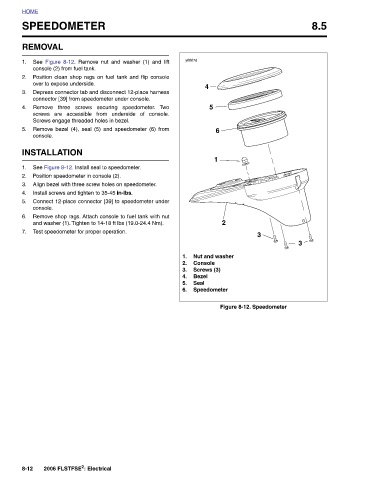

                                                                                3                     Figure 8-12. Speedometer









                                                                            2
                                               6        1
                                        5                                              Nut and washer  Speedometer
                                 4                                                       Console  Screws (3)  Bezel  Seal
                         y0067d
                                                                                       1.  2.  3.  4.  5.  6.


                                        Two










               SPEEDOMETER  See  Figure 8-12.  Remove nut and washer (1) and lift console (2) from fuel tank.  Position clean shop rags on fuel tank and flip console over to expose underside. Depress connector tab and disconnect 12-place harness connector [39] from speedometer under console.  Remove three screws securing speedometer.  screws are accessible from underside of console. Screws engage threaded holes in bezel. Remove bezel (4), seal (5) and speedometer (6) from  INSTALLATION See Figure 8-12. Install seal to speedometer. Position speedometer in console (2).  Align bezel with three screw holes on speedometer. Install screws and tighten to 35-45 in-lbs. Con











          HOME       REMOVAL  1.  2.  3.  4.   5.  console.  1.  2.  3.  4.  5.  console.   6.  7.                                                       8-12
