Page 721 - 2006 HARLEY FLSTCI SERVICE MANUAL
P. 721
d0395x2x
11 10
9
12 8
2
3
4

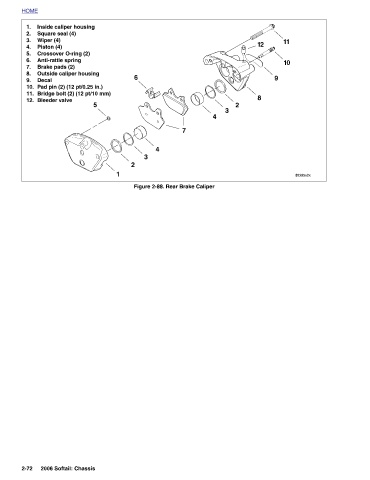

Figure 2-88. Rear Brake Caliper
7
4
3
6
2
1
5
Inside caliper housing Square seal (4) Wiper (4) Piston (4) Crossover O-ring (2) Anti-rattle spring Brake pads (2) Outside caliper housing Pad pin (2) (12 pt/0.25 in.) Bridge bolt (2) (12 pt/10 mm) Bleeder valve 2006 Softail: Chassis
