Page 944 - 2006 HARLEY FLSTCI SERVICE MANUAL
P. 944
4-19
13
2006 Softail: Fuel System
5
4
2
1
3
3
4

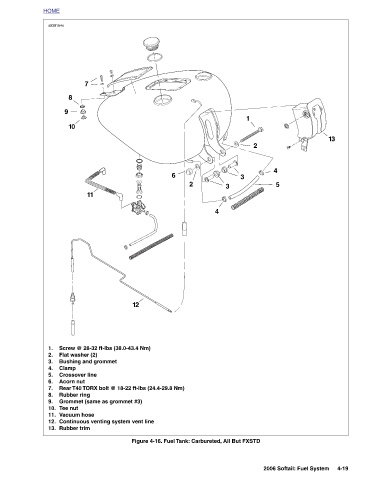

2 Figure 4-16. Fuel Tank: Carbureted, All But FXSTD
6
Screw @ 28-32 ft-lbs (38.0-43.4 Nm) Grommet (same as grommet #3) Continuous venting system vent line
12 Rear T40 TORX bolt @ 18-22 ft-lbs (24.4-29.8 Nm)
11
7 Bushing and grommet
8 10 Flat washer (2) Crossover line Acorn nut Rubber ring Vacuum hose Rubber trim
9 Clamp Tee nut
HOME s0391b4x 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13.
