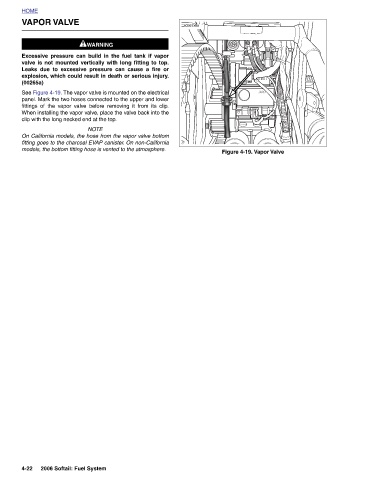

Figure 4-19. Vapor Valve
















               s0567x8x















                     1WARNING 1WARNING Excessive pressure can build in the fuel tank if vapor valve is not mounted vertically with long fitting to top. Leaks due to excessive pressure can cause a fire or explosion, which could result in death or serious injury. See Figure 4-19. The vapor valve is mounted on the electrical panel. Mark the two hoses connected to the upper and lower fittings of the vapor valve before removing it from its clip. When installing the vapor valve, place the valve back into the  NOTE On California models, the hose from the vapor valve bottom fitting goes to the charcoal EVAP canister. On non-California models, the bottom fitting hose is vented





                                              clip with the long necked end at the top.                                                                          2006 Softail: Fuel System
              VAPOR VALVE
