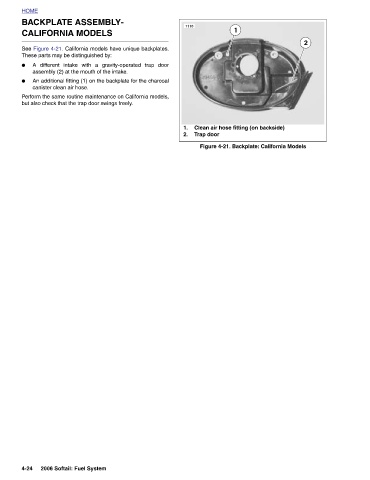

                                                 Clean air hose fitting (on backside)  Figure 4-21. Backplate: California Models








                 1







               7118                              1.  Trap door  2.










                            A different intake with a gravity-operated trap door An additional fitting (1) on the backplate for the charcoal
              BACKPLATE ASSEMBLY- CALIFORNIA MODELS See Figure 4-21. California models have unique backplates. These parts may be distinguished by:  assembly (2) at the mouth of the intake.  canister clean air hose.  Perform the same routine maintenance on California models, but also check that the trap door swings freely.  2006 Softail: Fuel System
