Page 979 - 2006 HARLEY FLSTCI SERVICE MANUAL

5.5 2

1 3

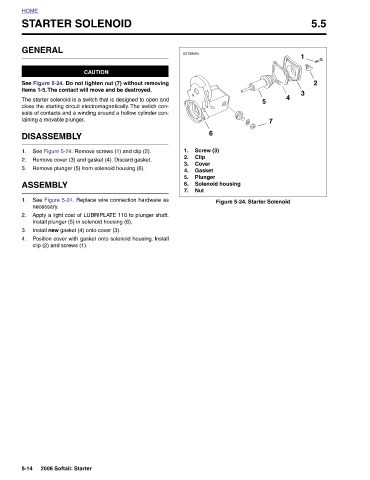

Figure 5-24. Starter Solenoid
4

7
5

Screw (3) Clip Cover Gasket Plunger Nut
6 Solenoid housing

b0158x5x 1. 2. 3. 4. 5. 6. 7.

STARTER SOLENOID

CAUTION See Figure 5-24. Do not tighten nut (7) without removing items 1-5. The contact will move and be destroyed. The starter solenoid is a switch that is designed to open and close the starting circuit electromagnetically. The switch con- sists of contacts and a winding around a hollow cylinder con- See Figure 5-24. Remove screws (1) and clip (2). Remove cover (3) and gasket (4). Discard gasket. Remove plunger (5) from solenoid housing (6). See Figure 5-24. Replace wire connection hardware as Apply a light coat of LUBRIPLATE 110 to plunger shaft. Install plunger (5) in solenoid housing (6). Install new gasket (4) onto cover (3).

GENERAL taining a movable plunger. DISASSEMBLY ASSEMBLY necessary. clip (2) and screws (1). 2006 Softail: Starter

HOME 1. 2. 3. 1. 2. 3. 4. 5-14
