2006 Softail: Starter

2

20

5
19
6
15
4
1 17 18
8
23 13

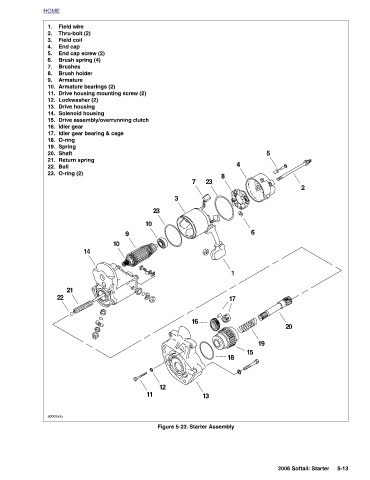

7 16 Figure 5-23. Starter Assembly

3

12
23 10 11

9 10

Field wire Thru-bolt (2) Field coil End cap End cap screw (2) Brush spring (4) Brushes Brush holder Armature Armature bearings (2) Drive housing mounting screw (2) Lockwasher (2) Drive housing Solenoid housing Drive assembly/overrunning clutch Idler gear Idler gear bearing & cage O-ring Spring Shaft Return spring Ball O-ring (2) 14 21
