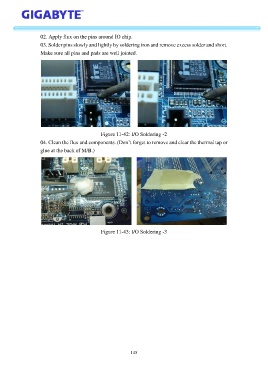

02. Apply flux on the pins around IO chip.
03. Solder pins slowly and lightly by soldering iron and remove excess solder and short.
Make sure all pins and pads are well jointed.
Figure 11-42: I/O Soldering -2
04. Clean the flux and components. (Don’t forget to remove and clear the thermal tap or
glue at the back of M/B.)
Figure 11-43: I/O Soldering -3
