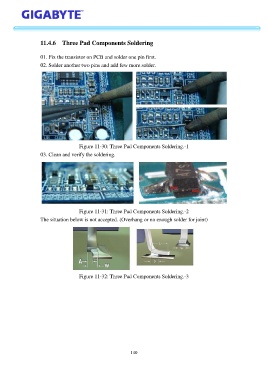

11.4.6 Three Pad Components Soldering
01. Fix the transistor on PCB and solder one pin first.
02. Solder another two pins and add few more solder.
Figure 11-30: Three Pad Components Soldering.-1
03. Clean and verify the soldering.
Figure 11-31: Three Pad Components Soldering.-2
The situation below is not accepted. (Overhang or no enough solder for joint)
Figure 11-32: Three Pad Components Soldering.-3
