P. 164

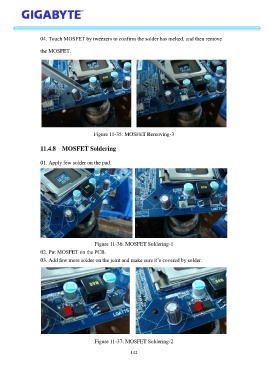

04. Touch MOSFET by tweezers to confirm the solder has melted, and then remove
the MOSFET.
Figure 11-35: MOSFET Removing-3
11.4.8 MOSFET Soldering
01. Apply few solder on the pad.
Figure 11-36: MOSFET Soldering-1
02. Put MOSFET on the PCB.
03. Add few more solder on the joint and make sure it’s covered by solder.
Figure 11-37: MOSFET Soldering-2
142
