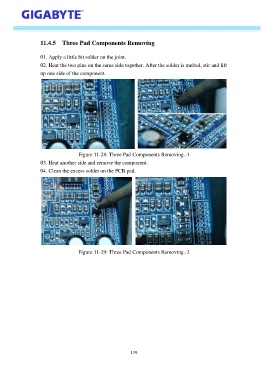

11.4.5 Three Pad Components Removing
01. Apply a little bit solder on the joint.
02. Heat the two pins on the same side together. After the solder is melted, stir and lift
up one side of the component.
Figure 11-28: Three Pad Components Removing.-1
03. Heat another side and remove the component.
04. Clean the excess solder on the PCB pad.
Figure 11-29: Three Pad Components Removing.-2
