P. 160

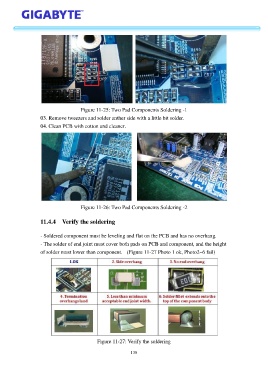

Figure 11-25: Two Pad Components Soldering -1
03. Remove tweezers and solder anther side with a little bit solder.
04. Clean PCB with cotton and cleaner.
Figure 11-26: Two Pad Components Soldering -2
11.4.4 Verify the soldering
- Soldered component must be leveling and flat on the PCB and has no overhang.
- The solder of end joint must cover both pads on PCB and component, and the height
of solder must lower than component. (Figure 11-27 Photo 1 ok, Photo2~6 fail)
Figure 11-27: Verify the soldering
138
