02. Press the X-Y button.

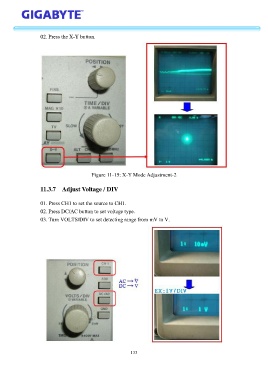

Figure 11-15: X-Y Mode Adjustment-2

11.3.7 Adjust Voltage / DIV

01. Press CH1 to set the source to CH1.
02. Press DC/AC button to set voltage type.
03. Turn VOLTS/DIV to set detecting range from mV to V.
