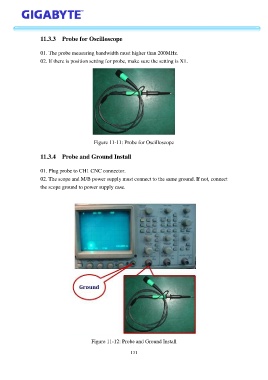

11.3.3 Probe for Oscilloscope

01. The probe measuring bandwidth must higher than 200MHz.
02. If there is position setting for probe, make sure the setting is X1.

Figure 11-11: Probe for Oscilloscope

11.3.4 Probe and Ground Install

01. Plug probe to CH1 CNC connector.

02. The scope and M/B power supply must connect to the same ground. If not, connect
the scope ground to power supply case.

Figure 11-12: Probe and Ground Install

131
