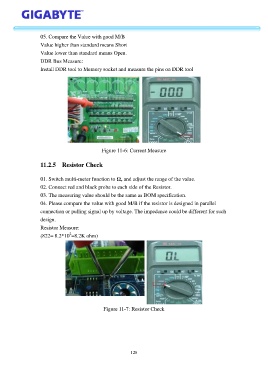

05. Compare the Value with good M/B

Value higher than standard means Short
Value lower than standard means Open.
DDR Bus Measure:
Install DDR tool to Memory socket and measure the pins on DDR tool

Figure 11-6: Current Measure

11.2.5 Resistor Check

01. Switch multi-meter function to Ω, and adjust the range of the value.
02. Connect red and black probe to each side of the Resistor.
03. The measuring value should be the same as BOM specification.

04. Please compare the value with good M/B if the resistor is designed in parallel
connection or pulling signal up by voltage. The impedance could be different for such
design.
Resistor Measure:
2
(822= 8.2*10 =8.2K ohm)

Figure 11-7: Resistor Check

128
