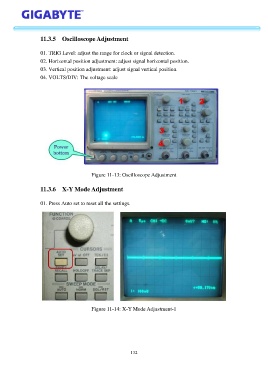

11.3.5 Oscilloscope Adjustment

01. TRIG Level: adjust the range for clock or signal detection.
02. Horizontal position adjustment: adjust signal horizontal position.
03. Vertical position adjustment: adjust signal vertical position.

04. VOLTS/DIV: The voltage scale

Figure 11-13: Oscilloscope Adjustment

11.3.6 X-Y Mode Adjustment

01. Press Auto set to reset all the settings.

Figure 11-14: X-Y Mode Adjustment-1
