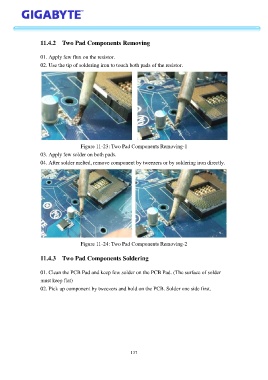

11.4.2 Two Pad Components Removing

01. Apply few flux on the resistor.
02. Use the tip of soldering iron to touch both pads of the resistor.

Figure 11-23: Two Pad Components Removing-1
03. Apply few solder on both pads.
04. After solder melted, remove component by tweezers or by soldering iron directly.

Figure 11-24: Two Pad Components Removing-2

11.4.3 Two Pad Components Soldering

01. Clean the PCB Pad and keep few solder on the PCB Pad. (The surface of solder
must keep flat)
02. Pick up component by tweezers and hold on the PCB. Solder one side first.
