Page 72 - GIGABYTE Service Manual-v3.0-110101
P. 72

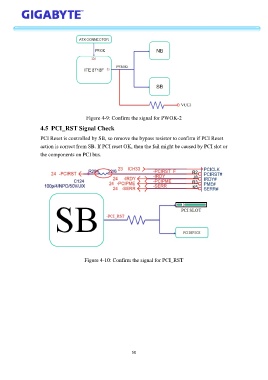

Figure 4-9: Confirm the signal for PWOK-2
4.5 PCI_RST Signal Check
PCI Reset is controlled by SB, so remove the bypass resistor to confirm if PCI Reset
action is correct from SB. If PCI reset OK, then the fail might be caused by PCI slot or
the components on PCI bus.
Figure 4-10: Confirm the signal for PCI_RST
50
