Notes: A Two values separated by a slash refer to instruction and data caches. b Both caches are
instruction only; no data caches.

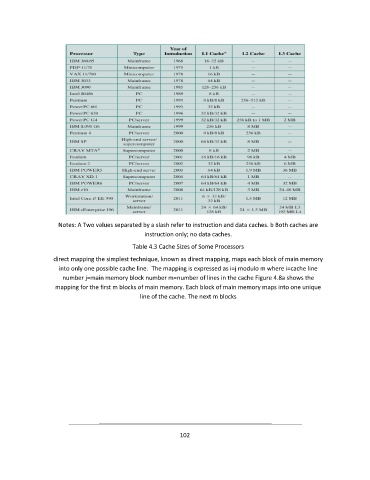

Table 4.3 Cache Sizes of Some Processors

direct mapping the simplest technique, known as direct mapping, maps each block of main memory

into only one possible cache line. The mapping is expressed as i=j modulo m where i=cache line
number j=main memory block number m=number of lines in the cache Figure 4.8a shows the
mapping for the first m blocks of main memory. Each block of main memory maps into one unique
line of the cache. The next m blocks

102
