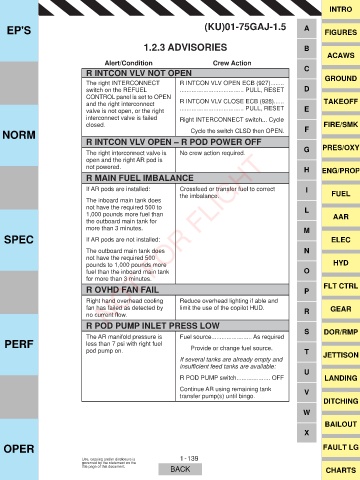

EP'S (KU)01-75GAJ-1.5 A FIGURES

1.2.3 ADVISORIES B
ACAWS
Alert/Condition Crew Action
R INTCON VLV NOT OPEN C GROUND
The right INTERCONNECT R INTCON VLV OPEN ECB (927)........
switch on the REFUEL ...................................... PULL, RESET D
CONTROL panel is set to OPEN
and the right interconnect R INTCON VLV CLOSE ECB (928)...... TAKEOFF
valve is not open, or the right ...................................... PULL, RESET E
interconnect valve is failed Right INTERCONNECT switch... Cycle
closed. F FIRE/SMK
NORM Cycle the switch CLSD then OPEN.
R INTCON VLV OPEN – R POD POWER OFF
G PRES/OXY
NOT FOR FLIGHT
The right interconnect valve is No crew action required.
open and the right AR pod is
not powered. H ENG/PROP
R MAIN FUEL IMBALANCE
If AR pods are installed: Crossfeed or transfer fuel to correct I
the imbalance. FUEL
The inboard main tank does
not have the required 500 to L
1,000 pounds more fuel than AAR
the outboard main tank for
more than 3 minutes. M
SPEC If AR pods are not installed: ELEC

The outboard main tank does N
not have the required 500
pounds to 1,000 pounds more HYD
fuel than the inboard main tank O
for more than 3 minutes.
R OVHD FAN FAIL P FLT CTRL
Right hand overhead cooling Reduce overhead lighting if able and
fan has failed as detected by limit the use of the copilot HUD. R GEAR
QR FXUUHQW ÀRZ
R POD PUMP INLET PRESS LOW
S DOR/RMP
The AR manifold pressure is Fuel source........................ As required
PERF less than 7 psi with right fuel
pod pump on. Provide or change fuel source. T JETTISON
If several tanks are already empty and
insuf¿cient feed tanks are available:
U
R POD PUMP switch.................... OFF LANDING

Continue AR using remaining tank V
transfer pump(s) until bingo.
DITCHING
W
BAILOUT
X

OPER FAULT LG
