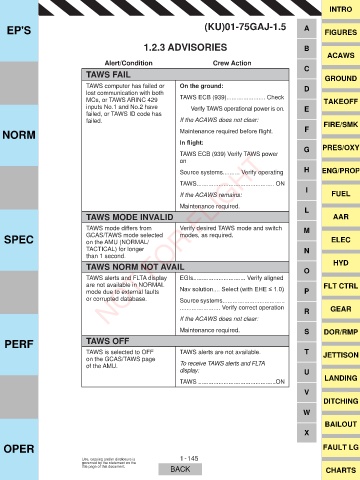

Page 175 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 A FIGURES

1.2.3 ADVISORIES B
ACAWS
Alert/Condition Crew Action C
TAWS FAIL GROUND

TAWS computer has failed or On the ground: D
lost communication with both
MCs, or TAWS ARINC 429 TAWS ECB (939)....................... Check TAKEOFF
inputs No.1 and No.2 have Verify TAWS operational power is on. E
failed, or TAWS ID code has
failed. If the ACAWS does not clear: FIRE/SMK
NORM 0DLQWHQDQFH UHTXLUHG EHIRUH ÀLJKW F

,Q ÀLJKW
G PRES/OXY
NOT FOR FLIGHT
TAWS ECB (939) Verify TAWS power
on
H ENG/PROP
Source systems.......... Verify operating
TAWS.............................................. ON
I
If the ACAWS remains: FUEL
Maintenance required. L
TAWS MODE INVALID AAR
TAWS mode differs from Verify desired TAWS mode and switch M
SPEC GCAS/TAWS mode selected modes, as required. ELEC
on the AMU (NORMAL/
TACTICAL) for longer N
than 1 second.
TAWS NORM NOT AVAIL O HYD

TAWS alerts and FLTA display EGIs............................... Verify aligned
are not available in NORMAL FLT CTRL
mode due to external faults 1DY VROXWLRQ 6HOHFW ZLWK (+( ” P
or corrupted database. Source systems.....................................
........................ Verify correct operation GEAR
R
If the ACAWS does not clear:
Maintenance required. S DOR/RMP
PERF TAWS OFF

TAWS is selected to OFF TAWS alerts are not available. T JETTISON
on the GCAS/TAWS page
of the AMU. To receive TAWS alerts and FLTA
display: U
TAWS ..............................................ON LANDING
V
DITCHING
W
BAILOUT
X

OPER FAULT LG

Use, copying and/or disclosure is 1 -145
