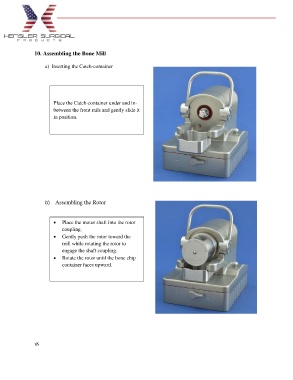

10. Assembling the Bone Mill
a) Inserting the Catch-container
Place the Catch-container under and in-
between the front rails and gently slide it
in position.
b) Assembling the Rotor
• Place the motor shaft into the rotor
coupling.
• Gently push the rotor toward the
mill while rotating the rotor to
engage the shaft coupling.
• Rotate the rotor until the bone chip
container faces upward.
18
