b) Lowering the HR500 Motor Frame
Using the left hand underneath the Motor for support and the right hand to hold the slightly open
base, place the motor shaft in-between the two guide rods and gently lower the Motor frame into
the Inner Frame. The parallel stainless steel guide rods will help you guide the motor shaft into
its proper place.

---Base

---Guide-rods

Motor frame----------

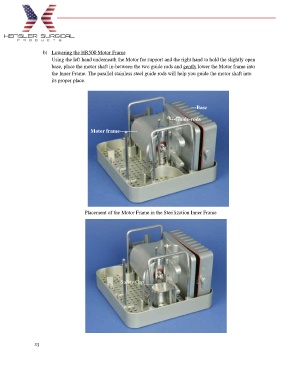

Placement of the Motor Frame in the Sterilization Inner Frame

Safety Cap
