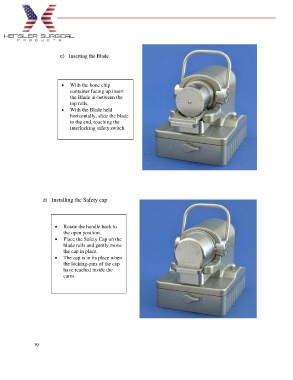

c) Inserting the Blade

• With the bone chip
container facing up insert
the Blade in-between the
top rails.
• With the Blade held
horizontally, slide the blade
to the end, touching the
interlocking safety switch

d) Installing the Safety cap

• Rotate the handle back to
the open position.
• Place the Safety Cap on the
blade rails and gently move
the cap in place.
• The cap is in its place when
the locking-pins of the cap
have reached inside the
cams.

19
