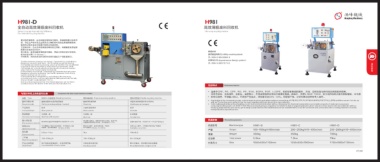

H981-D H981

全自动高效薄膜废料回收机 高效薄膜废料回收机
Series Computer Automatic High Efficiency Film scrap recycling machine
Film Materials Recycling Machine

牵引预压紧机构：由变频器及电机独立控制，将薄膜预牵引及预压
紧，保证生产线不受主压紧及切刀等机构可能发生的故障的影响，
提供经过预压紧排空的条状料给主压紧机构。
主压紧机构：由大功率变频器及电机独立控制，将薄膜压紧成结实
的条状料供给切刀切片。
切刀机构：由变频器及电机独立控制，用滚刀材料切成片状粒料， 仿造必究
粒料长度可调（4~10mm）。 实用新型专利号 Utility model patent:
吹料机构：用风机将成形的粒料自动吹送到生产线的进料口。 ZL 2004 3 0043366.9
外观专利号 Appearance design patent:
Traction advance pressing mechanism: Independently controlled by
frequency converter and motor , the film advance get into traction ZL 2004 3 0037571.X
mechanism and advance pressing, ensure production line not affected
by possible failures resulted by host pressing mechanism, cutter 造粒设备
mechanism etc. provide advance pressing and exhaust air banded
edge material for host pressing mechanism.
Host pressing mechanism: Independently controlled by high-power
frequency converter and motor , put the film pressure into a strong
banded material cut into slices.
Cutter mechanism:Independently controlled by the frequency
converter and motor, cut the materials into flake granules by the hob,
Granule length is adjustable(4~10mm).
Granules blowing mechanism: The formed granules can be blown
automatically by the blower to the feed port of production line.
性能特点 Performance features
适用于CPE、PE、CPP、PO、PP、EVA、BOPA、POF、LLDPE、无纺布等薄膜的废料 、次品、边料处理与原料高比例的配合使用。
与现时市场上的机器对比表 Comparison with other recycle machines in market 冷切式造粒，无需加热，无粉尘，噪音极小，不改变物料的化学成分和塑化性能。耗电少，功率5.5KW-11KW，加工出的粒料比重与原粒相似，可与原
料均匀混合，不堵塞入料口，不容易产生晶点，添加量可达30%-40%。可搭配产线、分切机联动或单独专人操作。
机型 Type H981-D造粒机 Recyling machine 塑料破碎机 Plastics cracking machine 塑料再生机 Plastic recycling machine
Applicable to for processing scrap, substandard products and edge material processing ofCPE,PE,CPP,PO,PP,EVA,BOPA,POF,TPU,LLDPE and Non-woven film etc.as
塑料回收方式 直接对塑料压紧后剪切造粒 直接用机械压碎 对塑料加热给塑料挤出机挤出
well as Productive grain material can be used together with high-proportion raw materials.
Recycle mode Cutting and shaped(non-heated) Crashing Heating up and shaped Cold-cutting pelleting without heating,no mill dust and minimal noise without changing the chemical composition and plastic property of materials.Low power
consumption;the power is 5.5KW-11KW;The processed granule proportion is similar to that of original granules,which can be evenly mixed with raw materials without
产品形状 粒状 片装状或粉沫状 粒状 blocking material inlet and hardly generating crystal lattices;The added amount can reach30-40%.It can be combined with production line or slitting machine or solely
manipulated by special person.
Product shape Slice granule Slice powder Granule
塑化性能 与原膜一致 与原膜一致 比原膜差
Chemistry performance Identical with original Identical No identical
最大添加量 因为粒状比重与塑料相差不大可添加30%-40% 因比重比塑粒轻，容易浮在加料斗顶部，造成下料 因塑化性能下降，可添加10%-15%且产品有晶点 机器参数 The machine parameters
Max accession amount 口阻塞及塑料挤出不均匀，只可添加5%-10%
使用方法 可与薄膜生产线及分切机联动，也可单独专人操 需设专人操作，自动化程度低，不能与 需两人以上操作，工艺复杂不能与生产线联动 机器型号 Machine type H981-B H981-C H981-D
作使用，自动化程度高. Single, online 生产线联动 Single, no online Complex, no online
Operating mode
产量 Output 100-150kg/h100m/min 200-250kg/h10-400m/min 200-280kg/h10-400m/min
耗电量 5.5kw~11kw 7kw 40kw以上
General power 重量 Weight 350kg 450kg 700kg
工作量 100~250kg/h 180~250kg/h 80~250kg/h 总功率 Total power 5.5kw 7.5kw 11kw
Machining amount
产品洁净程度 生产线联动直接造粒，不受环境污染 可能会受环境污染 因工序复杂，受环境污染机会最高 外形尺寸 Size 1050x630x1700mm 1250x630x1900mm 1700x1060x1700mm
Cleaniness No polluted as directly online May be prlluted Be polluted as its complex work
