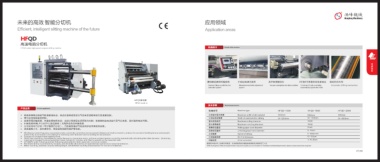

未来的高效 智能分切机 应用领域

Efficient, intelligent slitting machine of the future Application areas

HFQD

高速电脑分切机
HFQD series high-speed computer slitting machine 机器细节 Details of the machine

德国跟边跟线纠偏系统 手动远程调刀系统 真空吸附接膜台 3寸及6寸放卷自动涨紧顶头 自动打孔机构 印刷包装
German follow-up with the line Manual remote knife adjustment Vacuum adsorption membrane station 3-inch and 6-inch unwinding Automatic drilling mechanism
correction system system automatically tighten the head

HFQD机背面
HFQD machine
技术参数 Technical parameters
产品应用 Product application
机器型号 Machine type HFQD-1300 HFQD-1600 HFQD-2000
收卷采用电控精密气胀滑差轴传动，自动计算卷径及控制气压来实现收卷张力及滑差控制。 分切卷材最大宽度 Maximum width of slit material 1250mm 1550mm 1950mm
牵引采用恒线速度控制。 分切后卷材宽度 Width of material after slitting 30-1250mm 30-1550mm 30-1950mm
放卷采用无轴放卷、矢量变频电机传动，自动计算卷径实现恒张力控制；放卷卷料由电动丝杆及气缸夹紧，放料架的电动升降。 最大收卷直径 Maximum rolling diameter Φ600
纠偏系统采用LPC&EPC(跟边跟线）光电静态自动纠偏系统 最大放卷直径 Maximum unrolling diameter Φ800
分切采用平刀分切（可订做圆刀分切），刀的调整通过气动及同步皮带传动来实现。 收卷纸芯直径 Rolling paper core diameter 3inch
系统具有计米、定长度停机、卷径运算及断料保护等功能。
放卷纸芯直径 Unrolling paper core diameter 3、6inch
Winding by vector frequency-conversion motor, electricity-controlled precise smooth distance air shaft to transmit, achieve the control of winding tension and smooth 5-400m/min
distance by automatically calculating the rewinding roller diameter and controlling the air pressure. 分切速度 Speed of slitting
Traction by constant linear speed control. 分切薄膜厚度 Slit film thickness 12-125um
Shaft-free unwinding, transmitted by vector frequency-conversion motor, achieve constant tension control by automatically calculating the roller diameter. Unwinding
materials is clamped by dynamoelectric thread rod and Air cylinder, and lifted by electric on the materials rack. 纠偏误差 Error correction ≤±0.5mm
LPC&EPC (side-following and line-following) photoelectric static automatic correction system.
Flat blade slitting round blade by request), and the knife adjusted by air-operated and synchronous strap transmission. 随着技术进步以上参数可能更改，如需要最新且详细的参数请联系洪峰销售工人员
Meter-counting, automatic stop by setting length, roll diameter counting and protection for the lack of materials. With the progress of the above parameters may be changed, such as the need for the latest and detailed parameters, please contact peak sales engineer
07/08
