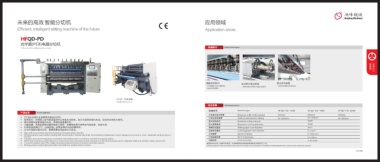

未来的高效 智能分切机 应用领域
Efficient, intelligent slitting machine of the future Application areas
HFQD-PD
光学膜(PCB)电脑分切机
PCB optical film slitting machine series 机器细节 Details of the machine
电脑自动调刀 自动张力收边系统 激光定位装置 新能源 光学行业
Computer automatically Automatic tension edge system Laser positioning device
adjust the knife
HFQD-PD机背面
HFQD-PD machine
技术参数 Technical parameters
机器型号 Machine type HFQD-PD-1300 HFQD-PD-1600 HFQD-PD-2000
产品应用 Product application
分切卷材最大宽度 Maximum width of slit material 1250mm 1550mm 1950mm
PCB光学膜行业受信赖的高效分切机。 分切后卷材宽度 Width of material after slitting 30-1250mm 30-1550mm 30-1950mm
收卷部分：采用双工位气胀滑差轴中心卷取方式收卷。独立矢量变频电机传动，自动对收卷张力控制。 Φ200
牵引采用矢量变频电机传动，实现恒线速度控制。 最大收卷直径 Maximum rolling diameter
无轴放卷、矢量变频电机提供恒张力控制；放卷电动调节宽窄及气缸夹紧，电动升降 最大放卷直径 Maximum unrolling diameter Φ800
纠偏系统采用EPC（边缘跟踪）超声波静态自动纠偏系统。 收卷纸芯直径 Rolling paper core diameter 3inch
分切采用剪切圆刀分切，根据需要选用自动排刀系统。 放卷纸芯直径 Unrolling paper core diameter 3、6 inch
High-efficiency slitting machine trusted by PCB optical film industry. 分切速度 Speed of slitting
Winding section:uses central winding with double station inflated slip shaft, transmitted by independent vector frequency-conversion motor, automatic winding tension 5-150m/min
control. 分切薄膜厚度 Slit film thickness 12-125um
Traction uses vector frequency-conversion motor transmission to achieve constant line speed control.
Shaft-free unwinding,vector frequency-conversion motor provides constant tension control.Unwinding by electric adjusted width and cylinder clamp, electric lift. 纠偏误差 Error correction ≤±0.5mm
Correction system uses EPC (edge tracking) ultrasound static automatic correction system. 随着技术进步以上参数可能更改，如需要最新且详细的参数请联系洪峰销售工人员
Slitting using circular knife,automatic knife selection system base on needs. With the progress of the above parameters may be changed, such as the need for the latest and detailed parameters, please contact peak sales engineer
