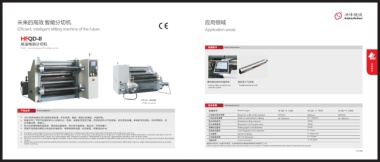

未来的高效 智能分切机 应用领域
Efficient, intelligent slitting machine of the future Application areas
HFQD-II
高速电脑分切机
HFQ-II series high-speed film slitting machine 机器细节 Details of the machine
德国跟边跟线纠偏系统 整体实心气涨轴 印刷包装
German follow-up with the line Overall solid gas up shaft
correction system
HFQD-II机背面
HFQD-II machine
技术参数 Technical parameters
产品应用 Product application 机器型号 Machine type HFQD-II-1300 HFQD-II-1600 HFQD-II-2000
分切卷材最大宽度 Maximum width of slit material 1250mm 1550mm 1950mm
HQII系列高速分切机结构紧凑合理，外形美观；底座、侧板灰铁铸造，牢固可靠。 分切后卷材宽度 Width of material after slitting 30-1250mm 30-1550mm 30-1950mm
收卷采用上下双气涨轴同向中心收卷方式，收卷、放卷的夹紧及刀轴、压辊的动作全气动控制，操作简便快捷。单电机变频驱动，同步带传动，运 最大收卷直径 Maximum rolling diameter Φ600
行平稳可靠，噪音小。 最大放卷直径 Maximum unrolling diameter Φ800
张力控制磁粉离合器收卷，磁粉制动器放卷，张力控制精度高、响应快、可调范围广。
放卷采用先进的模拟光电自动纠偏系统，有静电消除装置、吹边装置、收卷自动计米。 收卷纸芯直径 Rolling paper core diameter 3inch
放卷纸芯直径 Unrolling paper core diameter 3、6inch
Compact, reasonable structure and aesthetic appearance; Base and side panel made with solid and endurable grey cast iron. 5-400m/min
Central winding with up and down double-air puffing axis in same direction. Unwinding and winding with simple and quick totally pneumatic controlled operation of knife- 分切速度 Speed of slitting
axis and pressing-stick; Driven by single engine with frequency variation; Timing belt for a smooth, dependable operation with minimal noise. 分切薄膜厚度 Slit film thickness 12-125um
Winding by tension-controlled magnetic powder clutch while unwinding by magnetic powder break with a high precise tension-control, quick response and wide adjustable
range. 纠偏误差 Error correction ≤±0.5mm
Unwinding with advanced simulated photoelectric automatic correction system, and equipped with electrostatic elimination device, edge-blowing device and automatic
meter-counting 随着技术进步以上参数可能更改，如需要最新且详细的参数请联系洪峰销售工人员
With the progress of the above parameters may be changed, such as the need for the latest and detailed parameters, please contact peak sales engineer
