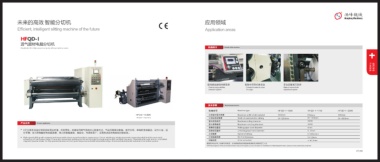

未来的高效 智能分切机 应用领域
Efficient, intelligent slitting machine of the future Application areas
HFQD-1
透气膜材电脑分切机
Breathable film High-speed computer slitting machine series 机器细节 Details of the machine
德国跟边跟线纠偏系统 配备中压风机排废边 手动远程调刀系统 卫生材料 医疗材料
German edge and line Constant tension to close Manual remote knife
correction system the edge adjustment system
技术参数 Technical parameters
机器型号 Machine type HFQD-I-1300 HFQD-I-1750 HFQD-I-2000
HFQD-1机背面 分切卷材最大宽度 Maximum width of slit material 1250mm 1700mm 1950mm
HFQD-1 machine 分切后卷材宽度 Width of material after slitting 30-1250mm 30-1550mm 30-1950mm
最大收卷直径 Maximum rolling diameter Φ600
产品应用 Product application
最大放卷直径 Maximum unrolling diameter Φ800
收卷纸芯直径 Rolling paper core diameter 3inch
HFQI系列高速分切机结构简洁合理，外形美观。收卷采用单气涨轴中心收卷方式，气动压膜紧贴收卷，悬空分切，单电机变频驱动，动力十足，运 放卷纸芯直径 Unrolling paper core diameter 3、6inch
行平稳；张力控制磁粉制动器放卷，张力控制精度高、响应快、可调范围广；采用先进的光电自动纠偏系统。
分切速度 Speed of slitting 5-400m/min
High-speed slitting with compact and reasonable structure and aesthetic appearance; Center winding by single pneumatic expansion shaft and the pneumatic 分切薄膜厚度 Slit film thickness 12-125um
squeezing of membrane clings; Pneumatic suspended splitting and driven strongly by single engine with variable-frequency Unwinding through tension-controlled 纠偏误差 Error correction
magnetic powder brake for high precise tension control, quick response and wide adjustable range. Advanced photoelectric automatic correction system. ≤±0.5mm
随着技术进步以上参数可能更改，如需要最新且详细的参数请联系洪峰销售工人员
With the progress of the above parameters may be changed, such as the need for the latest and detailed parameters, please contact peak sales engineer
